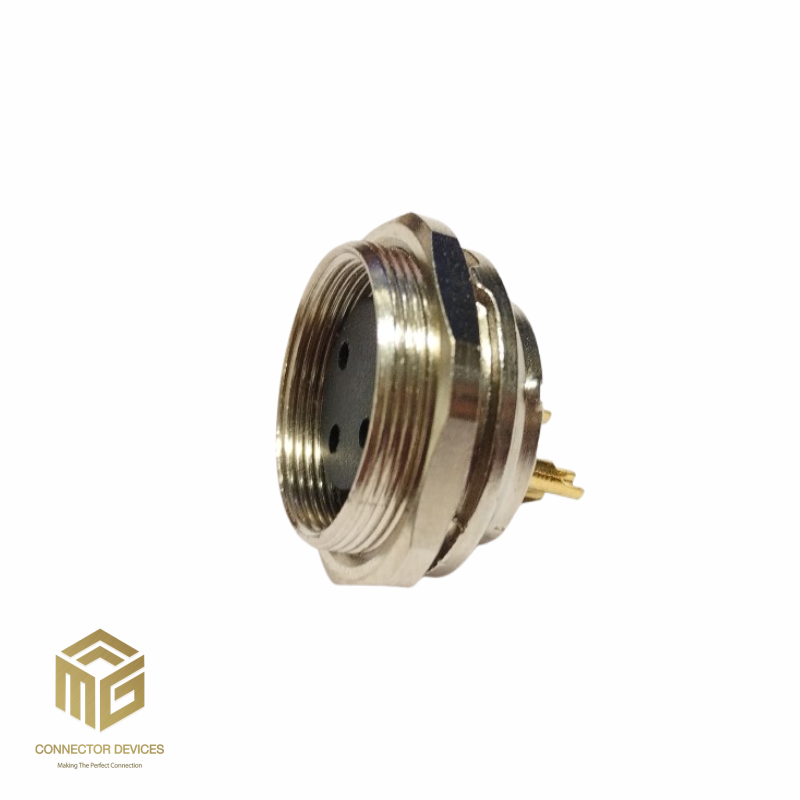

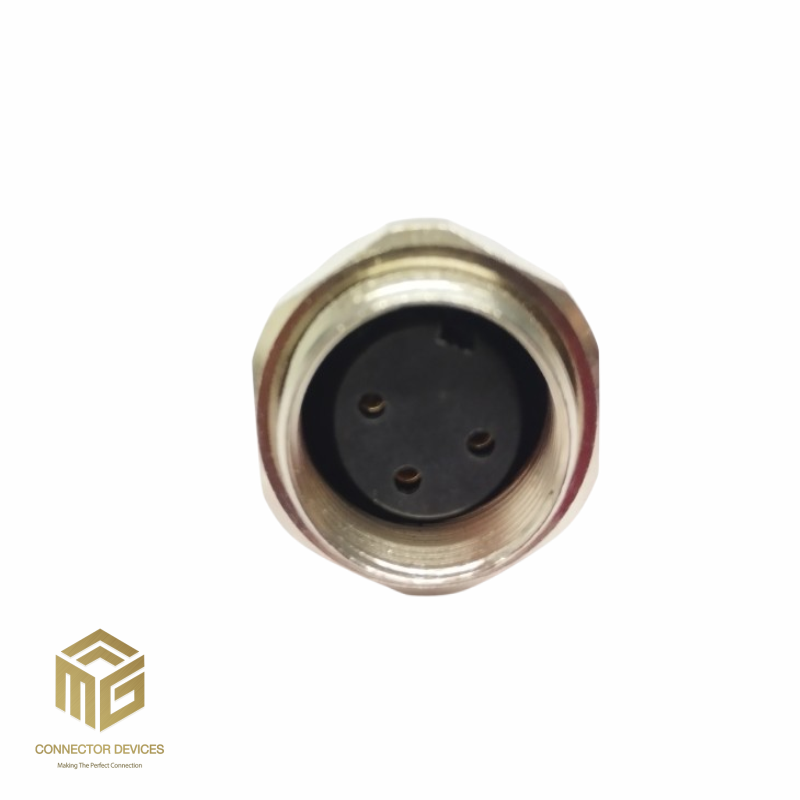

3 PIN 91 SERIES FEMALE PANEL STANDARD

₹478.00

Number Of Contacts : 3 Pin TO 12 PIN
Male Female Cable
Insulator Material : Glass Filled PBT
Shell Material : Die Cast Zinc
Contact Material : Copper Alloy
Shell Finish : Nickel Plating
Contact Finish : Silver Plating At The Contacting Area & Tin Lead Plated At Termination
Contact Resistance : ≤ 5 ohms max.
Insulation Resistance : ≥ 5000 Megaohms
Volatage Proof : 750V rms
Color Of Insulator : Black
Operating Voltage : 250V AC
Operating Temperature : -40 to +85
